A detailed overview of the Bluetooth 5.0 wireless communication protocol. Changes and updates that a new version includes compared with Bluetooth 4.2.

Bluetooth 5.0 is a new version of a wireless communication protocol, which provides information exchange within a short distance between different devices. Compared with version 4.2, the new Bluetooth version provides twice the speed of receiving and transmitting data and four times the range of devices, increases the reliability of wireless communication, and adds a range of other useful innovations. Later, we will tell you what Bluetooth 5.0 is and analyze its new features.

Operating principle of Bluetooth connection

The technology was created in 1998 by a group of commercial companies, which had been looking for a way of wireless signal transmission between a phone and a laptop. This group included Ericsson, Intel, Nokia, Toshiba, and IBM. Engineers of these IT giants developed a new radio protocol with a short range to replace wired connections between various gadgets and household appliances. The new technology was named Bluetooth. It was more power-efficient, compact, and cheap (in terms of production) than any other analogs.

Currently, an organization called Bluetooth Special Interest Group is engaged in technology development — this is a group of more than 36 000 commercial and non-commercial companies, which include Microsoft, Lucent, and other organizations, the activity of which is quite closely related to communications and various network technologies.

As the Bluetooth interface uses radio communication, this means that they should have special Bluetooth chips to receive and transmit radio waves to provide a connection between devices. This also means that connected devices shouldn’t be in direct line of sight (however, there shouldn’t be obstacles, which are insurmountable to radio waves, between them). The signal transmission range depends on the Bluetooth version and the power of the devices. Usually, devices can connect properly within a 10-20-meter range with obstacles (walls, ceiling, furniture, human body, clothes) and 50-250-meter range – without obstacles.

A signal is transmitted in the ISM band (Industry, Science and Medicine), which is usually used in electronic gadgets, household appliances, and various commercial wireless networks. Signal frequency: 2,402-2,48 GHz (or 2402-2480 MHz).

To improve the communication quality, the spectrum spreading method with the so-called frequency-hopping spectrum spreading (or FHSS) is used. Due to that, it’s possible to ensure resistance to broadband interferences. Besides, FHSS is relatively easy to implement and it doesn’t require expensive equipment.

Features and Differences Overview of Bluetooth 5.0
Bluetooth module appearance and scheme. Source

The FHSS can be briefly explained like this: a wireless communication module breaks data into a big number of small information packets and transmits them with the help of a pseudo-random algorithm with frequency hopping (about 1600 hops per second) or via a pattern, composed of 79 channels. In such a system, only those Bluetooth chips, which were initially configured to the same patterns, can «understand» each other. And for other devices, such a radio signal (data) will only be a radio noise. Thus, the FHSS protocol provides Bluetooth connection only between specific devices, which the user (users) have specified.

Therewith, several devices connected via the same patterns can be combined into «a piconet». This is a centralized structure, where one device is a master and other devices are slaves. The master defines the piconet pattern, which all slaves are going to work on, and synchronizes its work. The maximum number of devices in the piconet is eight slaves with one master.

Piconets in Bluetooth can work independently as well as jointly within a peer-to-peer network — «scatternet». To do so, piconets should have at least one common device. Due to the scatternet, you can connect up to 10 piconets and 71 slaves. In addition, there is an opportunity to use gate devices to connect devices over a long distance via the internet.

Features and Differences Overview of Bluetooth 5.0
A schematic representation of a Bluetooth piconet and scatternet. Source

Review of key improvements of Bluetooth 5.0

Starting with version 4.0, the Bluetooth protocol supports two types of devices. The first one is Bluetooth Classic (BR/EDR). It’s used when you need to transmit large amounts of data «through the air»; for instance, in automotive entertainment systems, audio headsets, or wireless speakers.

Another type is Bluetooth Low Energy (BLE) devices, which consume a relatively small amount of energy. It’s more often used in systems that require low-energy consumption (for example, in battery-powered devices) or in apps, which transmit small amounts of information with big breaks between communication sessions (for instance, in sensors of environmental parameters, various switches, and other IoT devices).

BR/EDR- and BLE devices are incompatible even if they have the same specifications and are released by one brand. For this reason, some devices such as mobile phones or laptops support both connection types. Such an approach is usually called the Dual-Mode Bluetooth.

Features and Differences Overview of Bluetooth 5.0
Where BR/EDR-, BLE-, and Dual-Mode Bluetooth are used. Source

Since 2010, the IoT market has been skyrocketing (and the number of sensors and devices, which require the BLE module, along with it), due to which BLE became a more common protocol compared with BR/EDR. Bluetooth Special Interest Group noticed this trend and released the Bluetooth 5.0 update, a large part of which is aimed to improve the BLE protocol’s work.

Here is a review of the most important features of Bluetooth 5.0.

Speed increase — to 2 MBit/s

Bluetooth is both a hardware-based radio system and a software stack that specifies the linkages between the architecture layers of the two. The heart of this specification is the protocol stack, which is used to define how Bluetooth works. The Bluetooth protocol stack is a set of layered programs. Each layer in a protocol stack talks to the layer above it and the layer below it. These layers range from the lower-level hardware-based radio system to an upper-level software stack that specifies the linkages between the layers.

Features and Differences Overview of Bluetooth 5.0
Bluetooth architecture: protocol stack consists of a three-layer hardware lower stack (radio, Baseband, LMP), and a three-layer software upper stack (HCI, L2CAP, and SDP). An application code then sits on top of this. Source

The bottom layer of the stack of Bluetooth protocols is called the Physical Layer and is normally referred to as PHY. According to an official Bluetooth 5.0 review, a new protocol version adds two new PHY variants to the PHY specification used in Bluetooth 4: LE 1M, LE 2M, and LE Coded. The first two options of PHY specifications are mainly used for the transmission of streaming data at close range. LE 1M is Bluetooth 4 and LE 2M was presented in Bluetooth 5.0 and it allows the physical layer to operate at 2 Mb/s (in theory, it can be 6.25 Мb/s).

Along with the Data Length Extension (DLE) feature, which is presented in Bluetooth 4.2, the new PHY level is going to allow increased speed and amount of data that can be transmitted via the BLE 5.0 channel. For devices and apps, which don’t require higher speed, 2Mb/s connection will make it possible to halve energy consumption because these devices will require half as much time to transmit the same amount of data (compared with Bluetooth 4.x).

Range increase — to 50-250 meters

The second PHY level, which is added to Bluetooth 5.0, — LE Coded — will provide the opportunity to increase the range of wireless signal transmission from 50 meters outdoors and 10 meters indoors to 40 meters indoors and more than 200 meters in line of sight. However, it’s not the limit. Under certain conditions, the range of the Bluetooth 5.0 signal can increase up to 1500 meters (in the open).

This became possible because raw data is still transmitted at the speed of 1 Mb/s in Bluetooth 5.0, but now this data includes double or eightfold redundancy and a feature of forward error correction (FEC), which cuts the chance of data loss during the signal transmission.

Here are different options for PHY and speed available in the version Bluetooth 5.0:

  • LE 1M: 1 Mbps — each bit is represented by 1 symbol.
  • LE 2M: 2 Mbps — each bit is represented by 1 symbol.
  • LE Coded: Mbps — each bit is represented by 2 or 8 symbols (Long Range S=2 and Long Range S=8 coding schemes respectively).
Put simply, the work of FEC can be presented using the following example. Let’s assume you need to transmit this data via Bluetooth: «0» or «1». Then in LE Coded / FEC instead of «0» the system can transmit «0000», and instead of «1» it can transmit «1111». This will be slower, but it gives some stability: if a message was damaged on the way, let’s say to «0001», then you can be sure that it should have been «0000». Similarly, if a signal was changed from «1111» to «1011», you still can be sure that it should have been «1».

If you got «1010», it's clear that two bits were changed, but it's not clear whether «0000» changed to «1010» or «1111» changed to «1010». This problem is solved by the FEC protocol in Bluetooth 5.0.

Here is a comparison of BLE 4.2, BLE 5.0, and two modes of BLE 5 Long Range:

Features and Differences Overview of Bluetooth 5.0

Location determination improvement

The new Bluetooth version also extends the functionality based on the location determination, which can encourage the introduction of technologies like BLE Beacons to increase the accuracy of navigation indoors in such places as railway stations and malls. It became possible due to more opportunities for information transmission to other devices without the necessity to actually connect to them.

Previous versions did it to notify you of a name, nature, and quality of connection to another device, but Bluetooth 5.0 is capable of much more: increasing the capacity and payload, combining data packets into one chain (maximum – 1650 bytes), sending data packets in given periods. All that can be used to receive information about your location from BLE beacons without the necessity to install the app or set up the connection.

Other important Bluetooth 5.0 features

Compatibility. Bluetooth 5 is fully compatible with Bluetooth 4.x. while supporting the whole main functionality of previous protocol versions (1.x., 2.x., 3.x.). For instance, you can use the functionality of the extended range of data transmission from Bluetooth 4.2 along with a higher speed of data transmission from Bluetooth 5.0.

Message capacity. Bluetooth 4.0 has a small message capacity of 31 bytes that only gives 17-20 bytes for actual data payload. Whilst Bluetooth 5.0 has a large messaging capacity of 255 bytes, which provides more than eight times the data payload when transmitting a message.

Double sound. Another Bluetooth 5.0 feature is the opportunity to play audio on two connected devices at once. Due to this feature, you can transmit the sound from your TV to two pairs of wireless earbuds or from your smartphone to two different speakers. In addition, you’ll be able to transmit two different signals from your smartphone to two different wireless earbuds. Or you can connect a pair of wireless earbuds to both a computer and a smartphone to receive audio signals from both devices-sources at the same time.

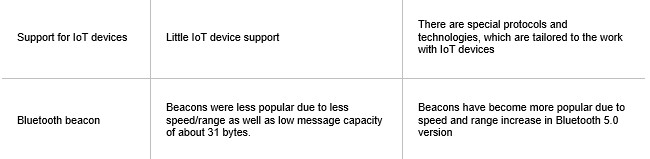

Key differences between Bluetooth 5.0 and 4.2

Features and Differences Overview of Bluetooth 5.0

Features and Differences Overview of Bluetooth 5.0

Features and Differences Overview of Bluetooth 5.0

What did the Bluetooth 5.1 and 5.2 updates add?

Since its inception in December of 2006, the Bluetooth 5.0 specification has become more convenient and advanced due to two updates — Bluetooth 5.1 (2019) and Bluetooth 5.2 (2020). The greatest improvement is the LE Audio feature, which allows transmitting a high-quality audio signal via BLE. Also, LE Audio provides hearing-impaired people with better sound quality.

Here is a review of improvements and features, which are added to new versions Bluetooth 5.1 and 5.2.

1. Enhanced attribute protocol (EATT)

Due to improvements in the Generic Attribute profile and update of ATT, it became possible to implement the enhanced attribute protocol (EATT). It supports the constant encryption, parallel transactions, L2CAP mode of secure flow control and ATT (MTU) change during the connection.

Among other things, it means the possibility to reduce the cut-through delay when transmitting a signal between devices.

2. LE power control

After the update to the 5.2 version of Bluetooth, the LE Power control appeared. It makes it possible to optimize the power level of signal transmission between two connected devices to maintain the optimum level of the Bluetooth signal in terms of energy efficiency and quality. In practice, this means that your smartphone will be able to change the signal power depending on the distance to the speaker: if it’s close – the phone gives a faint signal and saves energy; if it’s far – strong signal but increased energy consumption.

3. Low-energy isochronous channels

In Bluetooth 5.2, a new feature of audio transmission via LE Isochronous Channels was added. A special feature of isochronous channels is a lack of data retransmission in case of errors. Damaged packets are just discarded, which gives the opportunity to play audio via Bluetooth in real time on low-energy wireless devices. Besides, the functionality of LE Isochronous Channels allows transmitting data time-based not to one but to several wireless devices that support Bluetooth 5.2.

Here are examples of things that you can implement with the help of this technology:

  • Low-energy audio signal. The new algorithm of audio signal compression can be used to improve the quality of audio signal, which is being transmitted via wireless headsets, hearing aids, etc.
  • LC3 — low complexity communication codec. The new Bluetooth codec can transmit more data at much lower bitrates. Due to that, manufacturers of wireless headsets can decide: to make earbuds less cumbersome, maximize the sound quality, or provide a longer service life of a battery of a wireless headset.
  • Hearing aid improvement. The new Bluetooth feature makes it possible to develop hearing aids, which are going to be less cumbersome, more operational, ensure better sound quality, and have some additional possibilities; for example, the quick synchronization with a phone, TV, speaker, or another hearing aid.

Comparison of Bluetooth 5.0 with 5.1 and 5.2

Features and Differences Overview of Bluetooth 5.0

Features and Differences Overview of Bluetooth 5.0

Features and Differences Overview of Bluetooth 5.0


Features and Differences Overview of Bluetooth 5.0 key takeaways:
